Step-by-Step Guide: Fixing Common Embroidery Machine Errors

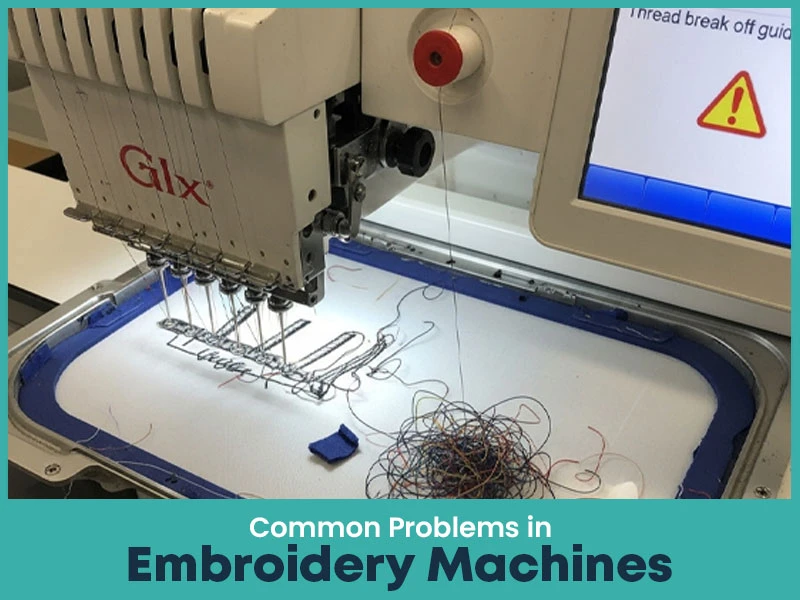

Common Problems in Embroidery Machines

1. Thread Loops on Fabric

Loops on the top or back of the fabric make the design look messy. This usually happens because the thread tension is not balanced.

2. Thread Breaking

When the thread keeps breaking, it has a majorly impact on your work and delays the project. Most of the time, broken threads are linked to poor threading, damaged needles or wrong tension.

3. Bobbin Thread Showing on Top

Bobbin thread on the front of the design indicates that the top thread tension or bobbin is not correctly adjusted.

4. Missed Stitches

Missed stitches leave empty spaces in the design. This problem is usually caused by a dull, bent or wrong type of needle.

5. Needle Breaking

Needle breakage happens often when the needle is old, inserted incorrectly or hits a hard surface.

6. Fabric Puckering or Wrinkling

When the fabric wrinkles under the stitches, it ruins the look of the embroidery. Poor hooping or a weak stabilizer is usually the reason.

7. Uneven or Loose Stitches

Uneven or loose stitches give the design a rough or messy look. This issue often comes from tension errors or low-quality thread.

8. Design Not Aligned

If the design looks misplaced, it usually happens because of poor hooping, machine calibration issues or wrong placement of the pattern.

9. Machine Not Reading the Design File

Sometimes machine doesn't load a design. This happens if the file format does not support or if the transfer device is wrong.

10. Strange Noise While Running

Unusual sounds often mean lint, broken threads or dust is inside the machine, or that a part needs oiling.

11. Tension Problems

Bad tension settings can cause looping, breakage, or uneven stitching. Getting the right balance between upper and bobbin tension is important.

12. Machine Jamming or Stopping Midway

When machine jams or suddenly stops, it means thread has tangled inside or the parts need cleaning.

Step-by-Step Fixes for These Problems

How to Fix Thread Breaks

• Rethread the machine carefully, making sure both top and bobbin threads go through the guides.

• Change dull or bent needles immediately.

• Always use new & high-quality embroidery threads.

• Reduce stitching speed if the design is very dense.

Fix Needle Breakage

• Use the appropriate needle size for the thread and material every time.

• Insert the needle fully and tighten it in place.

• Replace needles often especially after large projects.

• Do not hoop fabric too tightly, as it can put pressure on the needle.

Fixing Bobbin Thread on Top

• Make sure the bobbin is properly set and adjusted evenly.

• The bobbin casing should be cleared of dust.

• Adjust bobbin tension carefully, trying on scrap cloth first.

• If all feasible, use the same type of thread in the bobbin and on top.

Preventing Fabric Puckering

• Hoop fabric firmly but avoid overstretching.

• Use the right stabilizer for your fabric.

• Lower stitch density in heavy designs.

• For soft materials, use a small needle.

Fixing Missed Stitches

• Replace it with a new & sharp needle.

• Choose the right type of needle (ballpoint for knitting & sharp for weaving).

• Rethread the top thread carefully.

• Slow down machine speed when working with tricky fabrics.

Fixing Jamming Issues

• Stop the machine and remove the hoop.

• Cut and remove tangled thread gently.

• Clean the bobbin area and under the needle plate.

• Oil the hook race if your machine manual recommends it.

Adjusting Machine Tension

• Start with the default tension settings in the manual.

• Test on scrap fabric before adjusting.

• Slightly increase upper tension if stitches are loose.

• Adjust bobbin tension only when absolutely needed.

Fixing Thread Looping

Make sure that the top thread is correctly placed in the tension disks before rethreading the machine.

Clear the tension area of dust and lint as well.

Use strong & high-quality embroidery thread all the time.

Solving Alignment Issues

• Hoop the fabric straight and centered.

• Check the machine to see if the designs shift often.

• Use templates or washable fabric markings for placement.

• Never pull the fabric while the machine is stitching.

Fixing Noisy Machines

• Stop the machine and remove the hoop.

• Clean the bobbin, hook and needle areas.

• Oil moving parts as recommended in your manual.

• Get in touch with a professional technician for assistance if the noise continues.

But if you’re tired of fixing the same errors again and again and want professional embroidery designs digitized perfectly, you can always rely on True Digitizing. We are one of the leading digitizing companies in the USA. We provide affordable embroidery digitizing services with fast turnaround. With True Digitizing, you can save time & focus on creativity instead of machine problems.

So if you want to enjoy embroidery without machine errors, place your order now at True Digitizing and let the experts handle your designs.

Conclusion

From this informative guide, we have cleared so many things like most embroidery machine errors can be solved with some patience and the right steps. Regular cleaning, proper threading & using quality materials can save you from embroidery machine problems. By understanding these common issues and their easy solutions, you can save time, avoid frustration & keep your projects to the next level. I hope you understood these easiest steps. Thank you for your attention.
